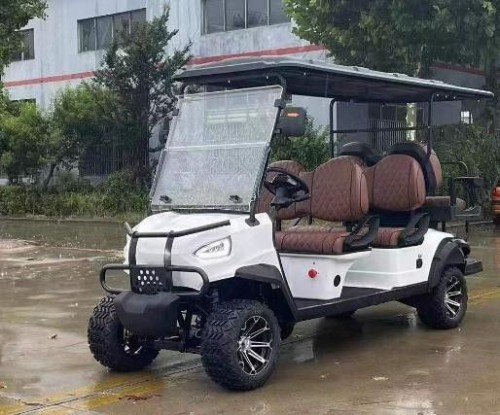

• 4+2 Double-Row 6-Seater Golf Cart Model A

4+2 Double-Row 6-Seater Golf Cart Model A

Inquire Now

Description:

Golf Configuration Table

Model: 6-seater 4+2 Golf





electrical system

Electrically controlled

AC Smart Controller



battery

6 maintenance-free batteries

Charger

On-board smart charger

Charging time

6-8 hours











Technical parameters

Rated membership

6 people

Cruising range

80-100 km

Top speed

≤35KM/h

System voltage

72V

Motor power

5KW AC motor

Minimum turning radius

3.5M

Braking distance

≤4M

Maximum gradeability

≤30%

MINIMUM GROUND CLEARANCE (MM)

150

LENGTH*WIDTH*HEIGHT(MM)

3730*1290*2050

FRONT AND REAR TRACK (MM)

950*950

WHEELBASE (MM)

2430

Curb weight (Kg)

660





















Body system

seat

High resilience integral car seats

ceiling

Injection molding of automotive engineering materials

Body material

The whole vehicle is made of injection molding material and module structure, which can be replaced in pieces to save the maintenance mechanism

appearance

Special PP injection molded instrument panel

steering wheel

Carbon fiber steering wheel

switch

Start switch, light combination switch, advance and retreat gear switch

Rearview mirrors

LED manual exterior mirrors

Lights & Signals

LED combination headlights, combination rear taillights, turn signals, brake lights, electric horn

Wiring harnesses

International waterproof and flame retardant wiring harness

Steering system

Automatic gap compensation function of rack and pinion steering system

Front and rear axles and suspension

Independent suspension + split rear axle + high-strength towbar shock absorber

Braking system

Four-wheel disc brake + foot-operated parking

Front gear

Acrylic HD folding glass

tyre

20*10.00-12 aluminum wheels

Drive mode

Rear-drive

Brake system

Brake assist

remark

Optional 4KW/5KW motor, color can be customized
