Golf Configuration Table |
||||
|

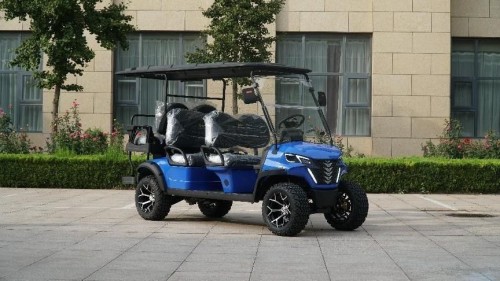

Model: 6-seater 4+2 Golf |
||||
|
electrical system |
Electrically controlled |
AC Smart Controller |
|
|
|
battery |
6 maintenance-free batteries |
|||
|
Charger |
On-board smart charger |
|||
|
Charging time |
6-8 hours |
|||
|
Technical parameters |
Rated membership |
6 people |
||
|
Cruising range |
80-100 km |
Top speed |
≤35KM/h |
|
|
System voltage |
72V |
Motor power |
5KW AC motor |
|
|
Minimum turning radius |
3.5M |
Braking distance |
≤4M |
|
|
Maximum gradeability |
≤30% |
MINIMUM GROUND CLEARANCE (MM) |
150 |
|
|
LENGTH*WIDTH*HEIGHT(MM) |
3730*1290*2050 |
|||
|
FRONT AND REAR TRACK (MM) |
950*950 |
|||
|
WHEELBASE (MM) |
2430 |
|||
|
Curb weight (Kg) |
660 |
|||
|
Body system |
seat |
High resilience integral car seats |
||
|
ceiling |
Injection molding of automotive engineering materials |
|||
|
Body material |
The whole vehicle is made of injection molding material and module structure, which can be replaced in pieces to save the maintenance mechanism |
|||
|
appearance |
Special PP injection molded instrument panel |
|||
|
steering wheel |
Carbon fiber steering wheel |
|||
|
switch |
Start switch, light combination switch, advance and retreat gear switch |
|||
|
Rearview mirrors |
LED manual exterior mirrors |
|||
|
Lights & Signals |
LED combination headlights, combination rear taillights, turn signals, brake lights, electric horn |
|||
|
Wiring harnesses |
International waterproof and flame retardant wiring harness |
|||
|
Steering system |
Automatic gap compensation function of rack and pinion steering system |
|||
|
Front and rear axles and suspension |
Independent suspension + split rear axle + high-strength towbar shock absorber |
|||
|
Braking system |
Four-wheel disc brake + foot-operated parking |
|||
|
Front gear |
Acrylic HD folding glass |
|||
|
tyre |
20*10.00-12 aluminum wheels |
|||
|
Drive mode |
Rear-drive |
|||
|
Brake system |
Brake assist |
|||
|
remark |
Optional 4KW/5KW motor, color can be customized |
|||
