Dezhou Yuehang Vehicle Industry Co., Ltd. configuration table |
||||
|

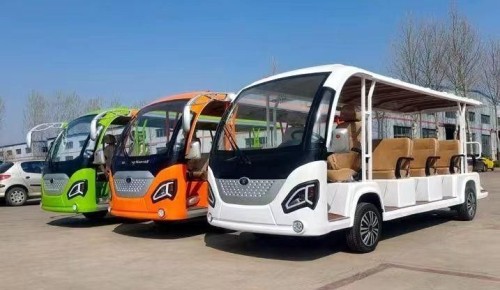

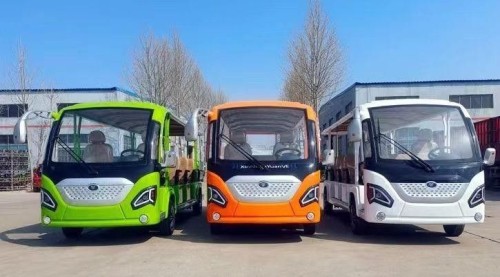

Model: 5-row 14-seater sightseeing car model |
||||
|
electrical system |
Electrically controlled |
AC Smart Controller |
|
|
|
battery |
Maintenance-free battery |
|||
|
Charger |
On-board smart charger |
|||
|
Charging time |
8-10 hours |
|||
|
Technical parameters |
Rated membership |
14 people |
||
|
Cruising range |
80-120 km |
Top speed |
≤30KM/h |
|
|
System voltage |
72V |
Motor power |
5KW |
|
|
Minimum turning radius |
4.5M |
Braking distance |
≤4M |
|
|
Maximum gradeability |
≤25% |
MINIMUM GROUND CLEARANCE (MM) |
270 |
|
|
LENGTH*WIDTH*HEIGHT(MM) |
5100*1550*2020 |
|||
|
Front and rear track, wheelbase |
3120 |
|||
|
Curb weight (Kg) |
980 |
|||
|
Body system |
seat |
Leather seats, adjustable front and rear |
||
|
Body material |
All-metal stamping body, vehicle electrophoretic painting |
|||
|
appearance |
Digital display LCD instrument (including voltage, speed, mileage, light and other signals) |
|||
|
steering wheel |
Car steering wheel + directional assistance |
|||
|
dashboard |
Injection molded instrument panel |
|||
|
switch |
Start switch, light and wiper combination switch, advance and retreat gear switch |
|||
|
Rearview mirrors |
Manual exterior mirrors |
|||
|
Body glass |
3C tempered glass |
|||
|
Lights & Signals |
LED combination headlights, combination rear taillights, turn signals, brake lights |
|||
|
Audio |
Car MP3 multimedia all-in-one machine, professional speakers |
|||
|
Wiring harnesses |
International waterproof and flame retardant wiring harness |
|||
|
Steering system |
Rack and pinion type steering machine |
|||
|
Front and rear axles and suspension |
Independent suspension + integral rear axle + high-speed leaf springs |
|||
|
Braking system |
Front disc and rear drum brakes, dual-circuit hydraulic brake (four-wheel drum type dual-circuit hydraulic vacuum assistance) |
|||
|
tyre |
155/65R13 |
|||
|
Drive mode |
Rear-drive |
|||
|
Parking brake method |
Handle type, anti-slippery |
|||
|
Brake system |
Brake assist |
|||
|
remark |
|
|||
